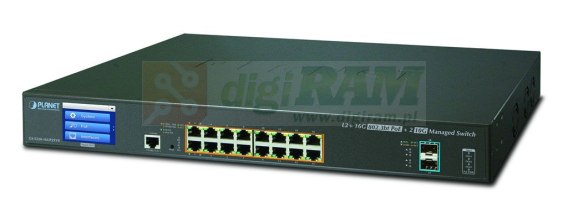

Planet GS-5220-16UP2XV L2+/L4 16-Port 10/100/1000T

PLANET GS-5220-16UP2XV(R) Seria PoE zoptymalizowanych pod względem kosztów przełączników 1.25U,Gigabit PoE Managed z ekranem dotykowym LCD posiada inteligentne funkcje POE PLANET w celu poprawy dostępności krytycznych aplikacji biznesowych. Zapewniają one zarządzanie podwójnym stosem IPv6 /IPv4 i wbudowane przełączanie gigabitowe OSPF/routing statyczny warstwy 3 wraz z 16 portami 10/100/1000BASE-T z 75-watowym Ultra PoE i 2 dodatkowymi portami 10Gigabit SFP+. Dzięki łącznemu budżetowi mocy do 400 W dla różnych rodzajów aplikacji PoE, seria GS-5220-16UP2XV(R) PoE z ekranem dotykowym LCD zapewnia szybkie, bezpieczne i ekonomiczne rozwiązanie sieciowe PoE dla małych firm i przedsiębiorstw.

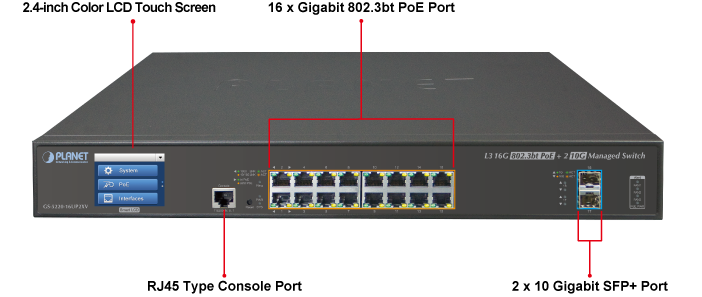

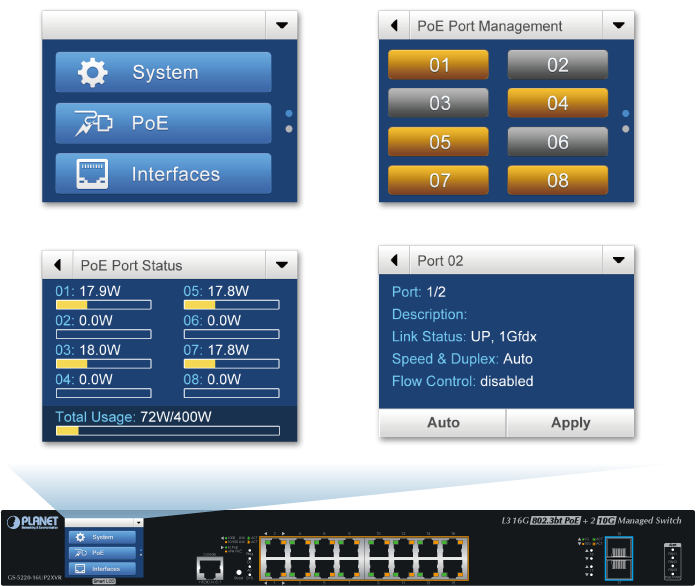

Inteligentne i intuicyjne sterowanie wyświetlaczem LCD

Unikalne przełączniki PLANET Smart LCD PoE zapewniają intuicyjny panel dotykowy na przednim panelu, który ułatwia zarządzanie Ethernet i Zarządzanie PoE PD. Znacznie promują efektywność zarządzania w dużych sieciach, takich jak przedsiębiorstwa, hotele, centra handlowe, budynki rządowe i inne obszary publiczne, a także oferują następujące specjalne funkcje zarządzania i statusu:

• Konfiguracja adresu IP, sieci VLAN i QoS
• Zarządzanie i status PoE
• Zarządzanie portami i informacje o stanie/SFP
• Rozwiązywanie problemów: diagnostyka i zdalne pingowanie IP
• Konserwacja: ponowne uruchomienie, domyślna fabryka i zapisz konfigurację

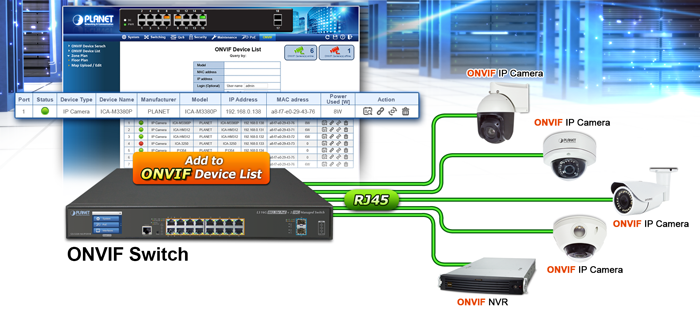

Wygodne i inteligentne urządzenia ONVIF z funkcją wykrywania

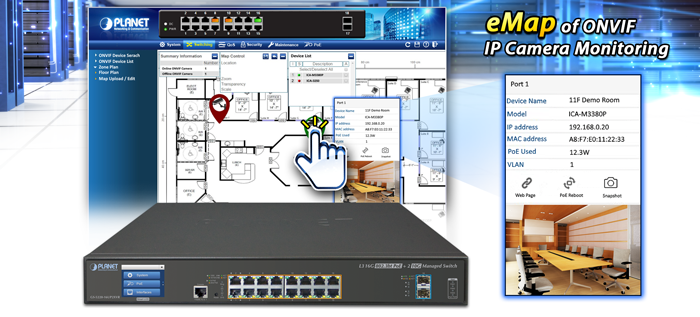

PLANET opracowało niesamowitą funkcję - ONVIF Support - która została specjalnie zaprojektowana do współpracy z video IP Surveillances. Z serii GS-5220-16UP2XV(R) PoE z graficznym interfejsem graficznym ekranu dotykowego LCD, klienci potrzebują tylko jednego kliknięcia, aby wyszukać i wyświetlić wszystkie urządzenia ONVIF za pośrednictwem aplikacji sieciowej. Ponadto klienci mogą przesyłać obrazy pięter do serii przełączników, dzięki czemu wdrażanie urządzeń do nadzoru i innych urządzeń jest łatwe do celów planowania i inspekcji. Co więcej, klienci mogą uzyskać informacje o nadzorze w czasie rzeczywistym i status online / offline. Pozwalają one na kontrolę restartu PoE z GUI.

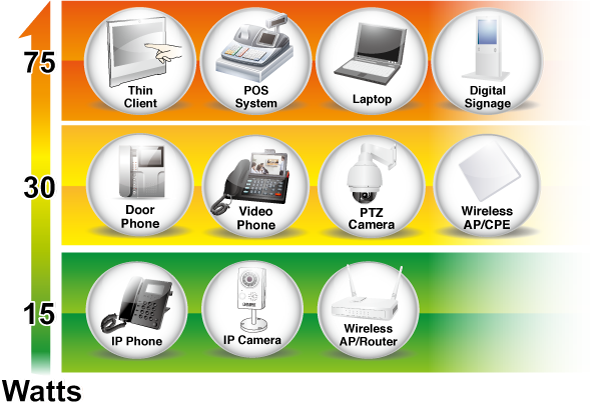

75 Watts of Power over 4-pair UTP

The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen that features Ultra PoE adopts the IEEE 802.3at/af standard. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1,2,3 and 6) or mid-span (Pins 4,5,7 and 8), they provide the capability to source up to 75 watts of power by using all the four pairs of standard Cat.5e/6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs. They can offer more PoE applications, such as:

• PoE PTZ speed dome
• Any network device that needs higher PoE power to work normally
• Thin-client
• AIO (All-in-One) touch PC
• Remote digital signage display

Built-in Unique PoE Functions for Powered Devices Management

Being the managed PoE switches for surveillance, wireless and VoIP networks, the GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen feature the following special PoE management functions:

• PD alive check
• Scheduled power recycling
• PoE schedule
• PoE usage monitoring

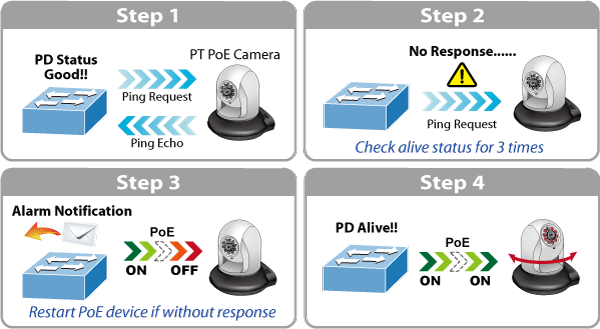

Intelligent Powered Device Alive Check

The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen will resume the PoE port power and bring the PD back to work. They will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

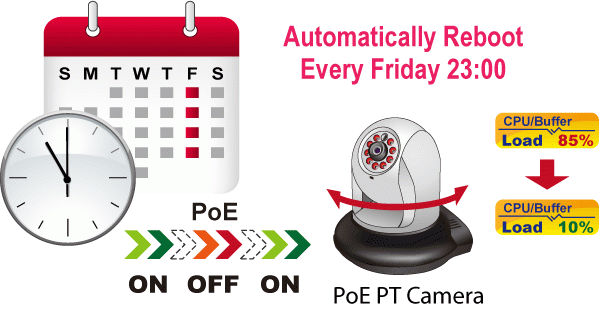

Scheduled Power Recycling

The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, they will reduce the chance of IP camera or AP crash resulting from buffer overflow.

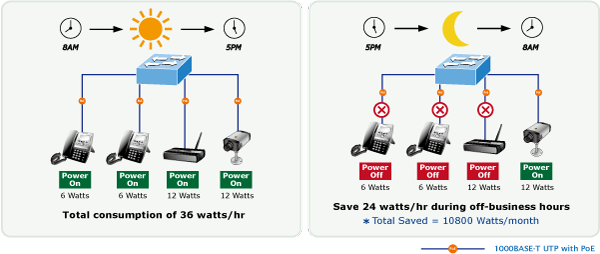

PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection, the GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen can effectively control the power supply besides their capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.

PoE Usage Monitoring

Via the power usage chart in the web management interface, the GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, they greatly enhance the management efficiency of the facilities.

Layer 3 Routing Support

The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Cost-effective 10Gbps Uplink Capacity

10G Ethernet is a big leap in the evolution of Ethernet. The two 10G SFP+ slots of the GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. They greatly support SMB network to achieve the maximum performance of 10Gbps in a cost-effective way.

Redundant AC/DC Power Supply to Ensure Continuous Operation

The GS-5220-16UP2XVR is particularly equipped with one 100~240V AC power supply unit and one 36~60V DC power supply unit to provide an enhanced reliable and scalable redundant power supply. The continuous power system is specifically designed to fulfill the demands of high-tech facilities requiring the highest power integrity. With the 36~60V DC power supply, the GS-5220-16UP2XVR are able to act as a telecom-level device that can be located in the electronic room.

Environment-friendly, Smart Fan Design for Silent Operation

The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen features a 19-inch metal housing, a low noise design and an effective ventilation system. They support the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen is able to operate reliably, stably and quietly in any environment without affecting its performance.

Solution for IPv6 Networking

By supporting IPv6/IPv4 dual stack and plenty of management functions with easy and friendly user interfaces, the GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen is the best choice for IP surveillance, VoIP and wireless service providers to deploy the IPv6 network. They also help the SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities while the ISPs construct the IPv6 FTTx edge network.

Robust Layer 2 Features

The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen can be programmed for advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen allows the operation of a high-speed trunk combining with multiple ports.

Powerful Security

The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen offers a comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Enhanced Security and Traffic Control

The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

User-friendly Secure Management

For efficient management, the GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen is equipped with console, web and SNMP management interfaces. With the built-in web-based management interface, it offers an easy-to-use, platform independent management and configuration facility. The GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen supports SNMP and it can be managed via any management software based on the standard SNMP v1 or v2 Protocol. For reducing product learning time, the GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the GS-5220-16UP2XV(R) PoE Series with LCD Touch Screen offers the remotely secure management by supporting SSH, SSL and SNMP v3 connection where the packet content can be encrypted at each session.

Inteligentny mechanizm diagnostyczny SFP/SFP+

Seria GS-5220-16UP2XV(R) PoE z ekranem dotykowym LCD obsługuje funkcję SFP-DDM (Digital Diagnostic Monitor), która znacznie pomaga administratorowi sieci w łatwym monitorowaniu w czasie rzeczywistym parametrów nadajników-odbiorników SFP i SFP+, takich jak optyczna moc wyjściowa, optyczna moc wejściowa, temperatura, prąd polaryzacji lasera i napięcie zasilania urządzenia nadawczo-odbiorczego.
