• ATEN VE802R RECEIVER

Symbol: VE802R

VE802R HDMI HDBaseT-Lite Receiver with POH (4K@40m) (HDBaseT Class B)

Gwarancja 24 miesięcy
1199.00
1199.00
szt. Do przechowalni
Wysyłka w ciągu 1 - 14 dni
Cena przesyłki 15
Odbiór osobisty 0
Odbiór osobisty wpłata 0
Paczkomaty InPost 15
Paczkomaty InPost - Pobranie 19
Kurier UPS 22
Kurie UPS (pobranie) 29
DHL Parcel 29
DPD 29
Schenker 50
DHL Express_EU 200
Dostępność 5 szt.

Zamówienie telefoniczne: 888751938

Zostaw telefon

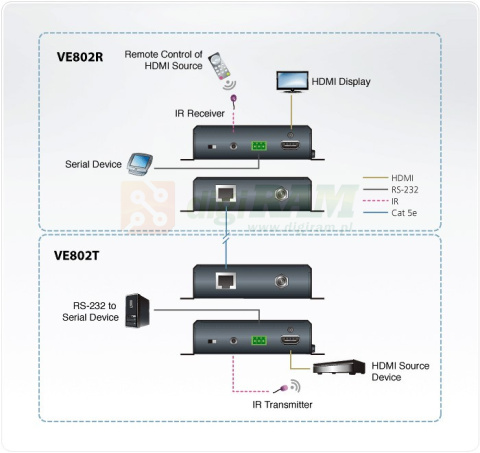

The VE802R HDMI HDBaseT-Lite Receiver connects with HDBaseT transmitters* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802R is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802R is perfect for a digital entertainment center or any installation that requires superior video quality.

* Compatible HDBaseT Transmitter Units: VE802T

  • HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  • HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  • POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
  • Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel – IR transmission is processed one direction at a time
  • Rack- Mountable

Video Input

Interfaces 1 x HDMI Type A Female (Black)
Impedance 100Ώ
Max. Distance 1.8 m
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100Ώ
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m (Cat 5e/6) / 70m (Cat 6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)
Control
RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR 1 x Mini Stereo Jack Female (Black)
Power
Connectors 1 x DC Jack (Black) with locking
Consumption DC5V, 4W
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.46 kg ( 1.01 lb )
Dimensions (L x W x H) 14.48 x 12.30 x 3.00 cm
(5.7 x 4.84 x 1.18 in.)
